Are you ready to boost your car’s lighting and take nighttime driving to the next level? Wiring up an LED light bar might sound tricky, but with the right steps, you can do it yourself easily and safely.
Imagine having brighter, clearer roads ahead without relying on expensive professional help. In this guide, you’ll discover simple, step-by-step instructions that anyone can follow. By the end, you’ll have your LED light bar shining bright and ready to go. Keep reading, and let’s get your car lighting upgrade started!
Gathering Necessary Tools
Before you start wiring your LED light bar, gathering the right tools is crucial. Having everything at hand saves time and prevents frustration. It also ensures your installation is safe and efficient.
Selecting The Right Light Bar
Choosing the right LED light bar depends on your vehicle and lighting needs. Consider the size and mounting options that fit your car. Brightness levels matter too—think about where and how you’ll use the light.
Have you checked if the light bar matches your car’s electrical system? Some models run on 12 volts, others on 24 volts. Picking the correct voltage avoids damage and ensures optimal performance.

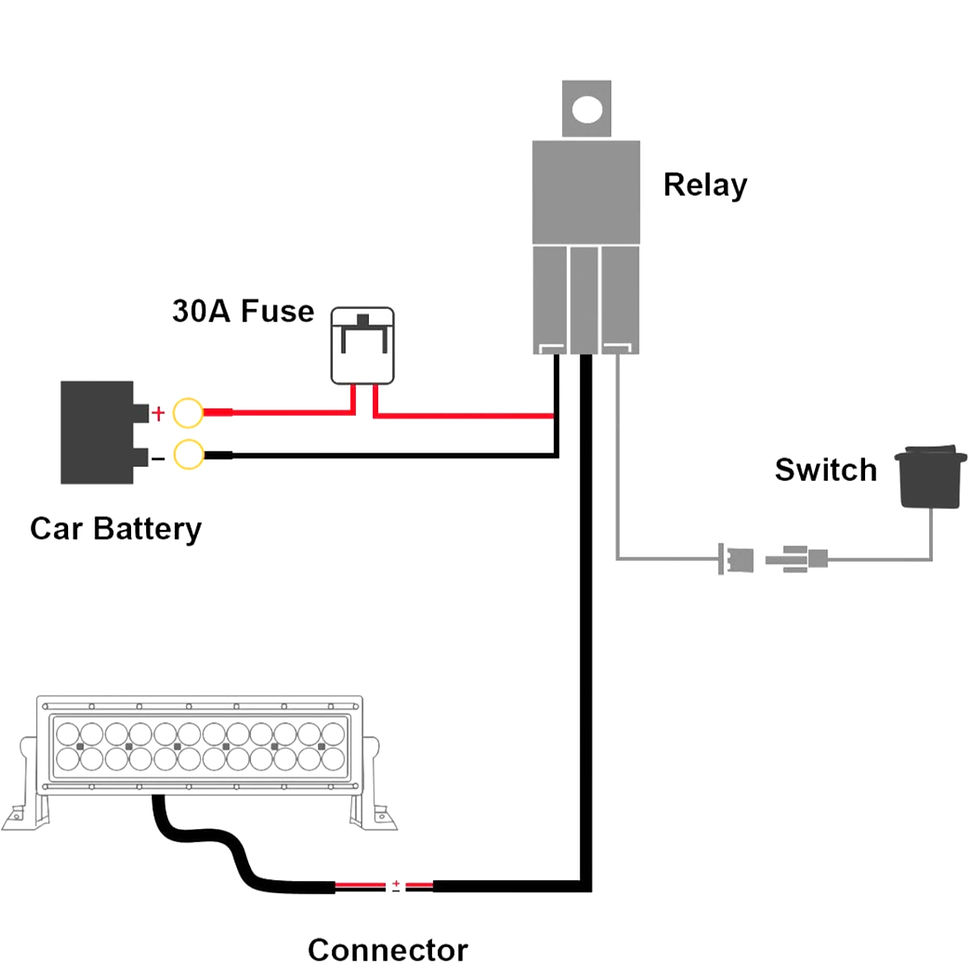

Essential Wiring Components
Wiring a light bar requires more than just the bar itself. You’ll need:
- Wiring harness:Includes wires, connectors, and sometimes a fuse.
- Relay:Protects your vehicle’s electrical system from overload.
- Switch:Lets you control the light bar easily.
- Fuse:Adds a layer of safety by preventing electrical shorts.
Make sure the wire gauge matches the current your light bar will draw. Too thin wires can overheat, causing problems down the road.
Safety Gear And Precautions
Don’t skip safety gear—it protects you during installation. Wear insulated gloves to avoid electric shocks. Safety glasses prevent debris from getting into your eyes while drilling or cutting wires.
Disconnect your car battery before starting any wiring work. This simple step prevents accidental shorts or sparks. Have you prepared a clean workspace? Clutter can lead to mistakes or lost tools.
Credit: www.oreillyauto.com
Wiring The Light Bar
Wiring the light bar properly ensures it works safely and efficiently. The process involves finding the right power source, connecting a switch, and securing ground wires. Each part is important to avoid electrical problems and keep your vehicle’s system stable.
Identifying Power Sources
Locate a power source that can handle the light bar’s current. The battery is the best choice for steady power. Use a fuse holder close to the battery to protect the wiring. Avoid using power from circuits with other heavy loads. Check the voltage with a multimeter before connecting.
Connecting The Switch
Place the switch in a spot easy to reach from the driver’s seat. Run a wire from the power source to one terminal of the switch. Connect another wire from the switch to the light bar’s positive lead. Use a switch rated for automotive use to prevent damage. Test the switch to confirm the light bar turns on and off smoothly.
Securing Ground Wires
Ground wires complete the electrical circuit. Attach the light bar’s negative wire to a clean, bare metal part of the car chassis. Use a ring terminal for a strong connection. Tighten the screw or bolt firmly to prevent loose connections. Check for corrosion regularly and clean the area if needed.
Testing And Finalizing
Testing and finalizing your LED light bar installation is essential for safety and performance. This stage ensures all wiring is secure and the light bar functions correctly. Take your time to check every connection before mounting the light bar permanently. Proper testing prevents damage and costly repairs later.
Checking Electrical Connections
Start by inspecting each wire and connector. Make sure wires are tight and free from damage. Use a multimeter to verify voltage at the light bar terminals. Confirm the ground wire is connected to a clean, bare metal surface. Test the switch to ensure it controls the light bar smoothly. Look for any loose or corroded terminals that might cause problems.
Mounting The Light Bar
Secure the light bar in its chosen position using the mounting brackets. Adjust the angle to aim the light beam where needed. Tighten all bolts firmly to avoid vibrations while driving. Double-check that the wiring has enough slack to prevent strain or pinching. Use cable ties to keep wires neat and away from hot or moving parts.
Troubleshooting Common Issues
The light bar does not turn on:
- Check fuse and replace if blown.
- Verify battery connection and voltage.
- Test the switch and relay for faults.
The light flickers or dims:
- Inspect all wiring for loose connections.
- Look for corrosion on terminals.
- Ensure the ground wire is secure.
Light bar stays on constantly:
- Check for a stuck relay or switch.
- Disconnect and test the wiring harness.
Address these issues before driving to ensure safety and proper function.
Credit: www.infiniteoffroad.com
Credit: www.nilight.com
Frequently Asked Questions
How Do I Wire An Led Light Bar To My Car Battery?
Connect the LED light bar’s positive wire to the battery’s positive terminal. Attach the negative wire to a clean ground point. Use a fuse and relay in the circuit for safety and proper power distribution.
What Tools Are Needed To Wire An Led Light Bar?
You need wire strippers, crimp connectors, a relay, a fuse, electrical tape, and a switch. A multimeter helps verify connections. Proper tools ensure a secure and safe installation.
Can I Wire An Led Light Bar To My Car’s Fuse Box?
Yes, you can tap into the fuse box using an add-a-fuse adapter. This method provides switched power and protects the circuit. Always check fuse ratings and vehicle wiring diagrams before proceeding.
How To Prevent Led Light Bar Wiring From Shorting?
Use insulated connectors and proper fuses to prevent shorts. Secure wires away from moving parts and sharp edges. Regularly inspect the wiring for damage or wear to maintain safety.
Conclusion
Wiring an LED light bar in your car is simple with the right steps. Follow the guide carefully to avoid mistakes. Use the correct tools and parts for safety. Double-check all connections before turning on the lights. Proper wiring ensures your light bar works well and lasts longer.
Take your time and stay patient during the process. Soon, your car will have better lighting for night drives. Enjoy the improved visibility and safer trips ahead.
